Automate Basics Wand Motor

Specifications

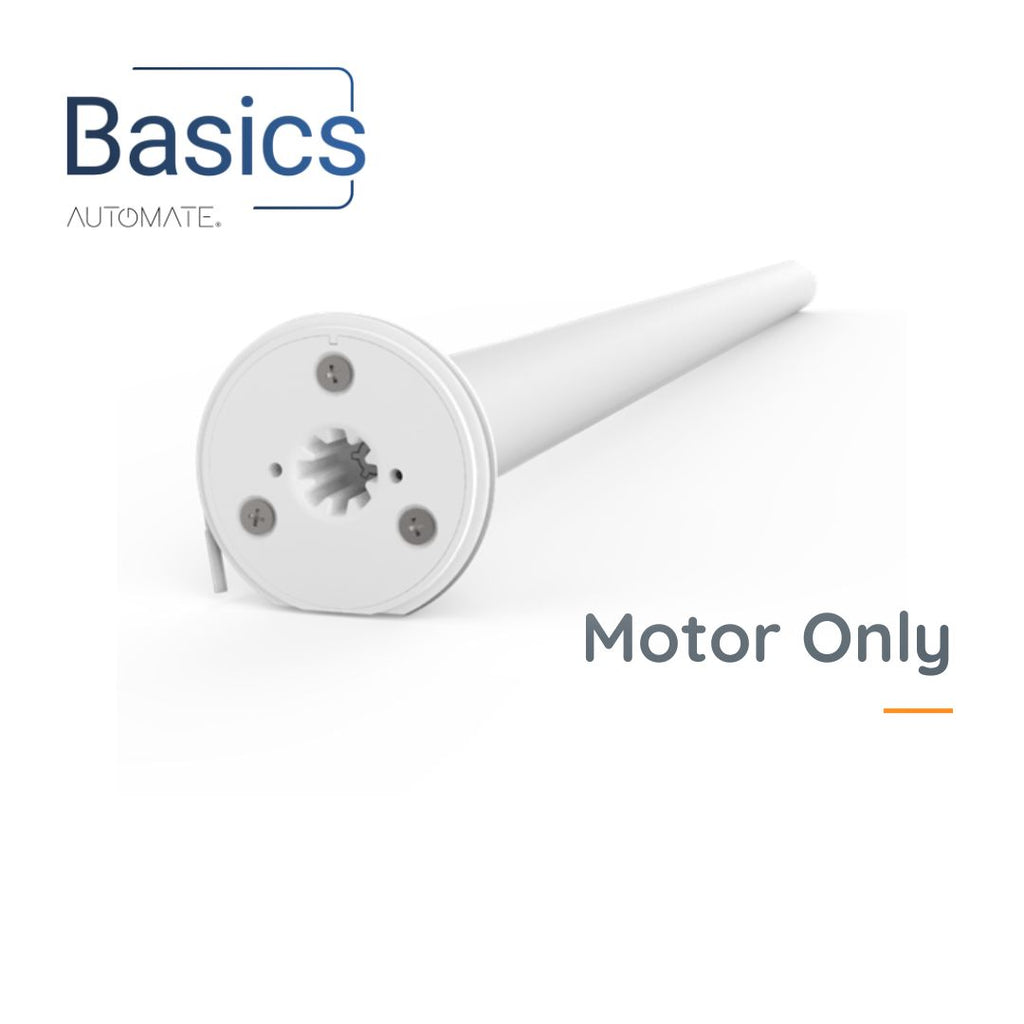

Basics 1.1Nm Wand Motor Specifications

Item Details
Wand Motor 1.1Nm MT01-1325-069023
Voltage 5V-DC
Length 454.4mm
Max Run Time 6 min
Speed 28 RPM (Adjustable to 20 or 24)
Compatible with AUTOMATE | Motor Cap for 5V Motor
AUTOMATE | 5V USB Wall Charger 2A
AUTOMATE | 5V USB Cable Type C 4000mm
*S45 Tube Light
*S45 Tube Standard
*S45 Tube Heavy
Warranty 3 Years


Magnetic Wand Control Specifications

Item Details
Codes 600mm | MT03-0602-069002
900mm | MT03-0602-069003
1200mm | MT03-0602-069004
Color/Finish White
Length 600mm / 60cm / 24"
900mm / 90cm / 36"
1200mm / 120cm / 47"
Use with Basics 1.1Nm Wand Motor
Warranty 3 Years
Total
$102.12

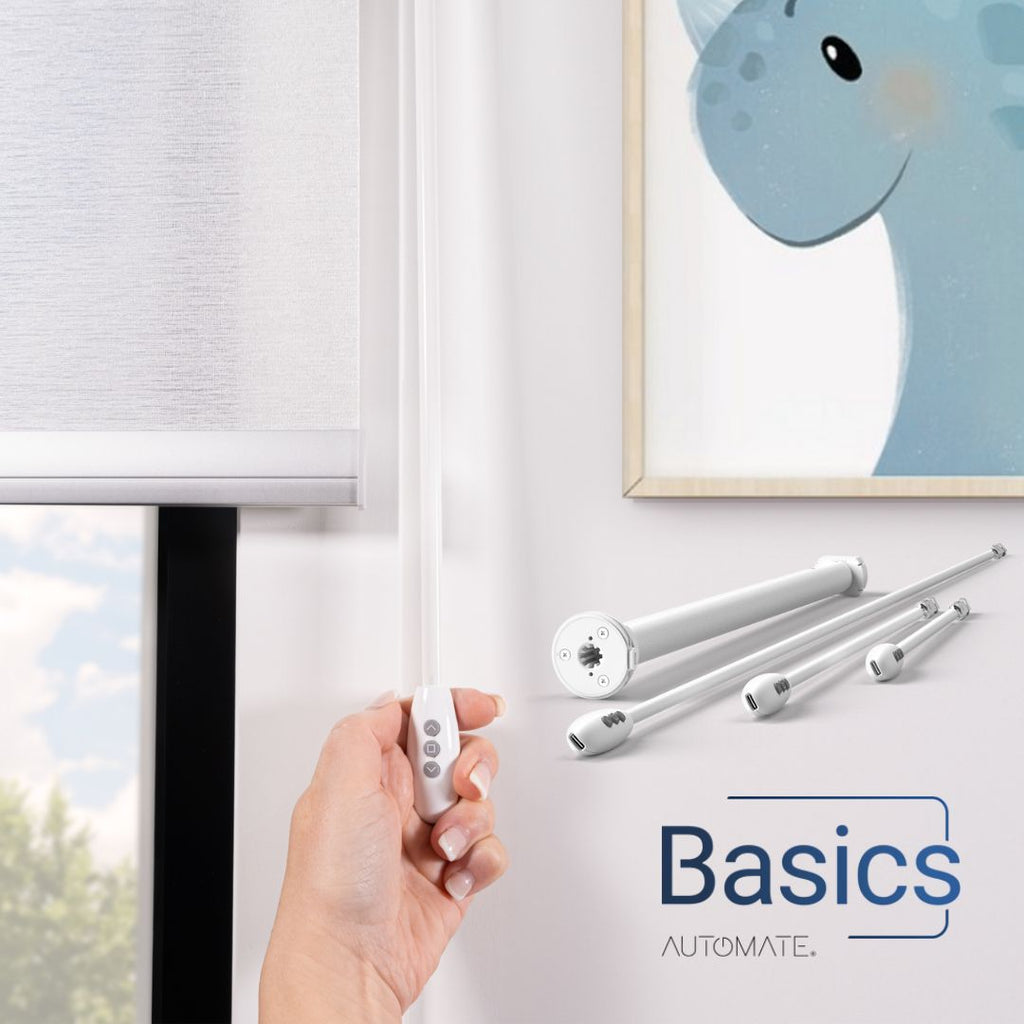

A simple, safe upgrade from manual to motorised shade operation.

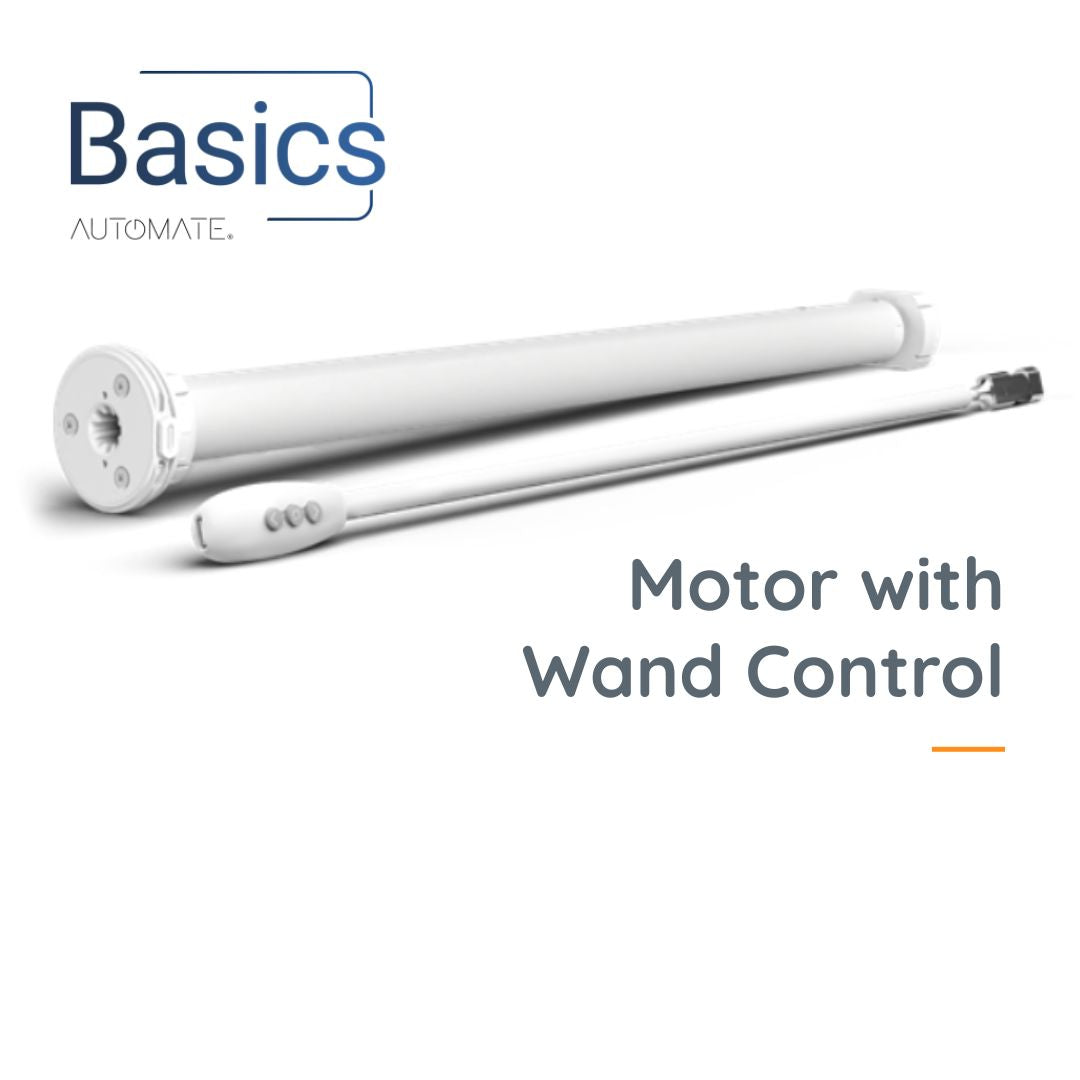

Ease and simplicity - the Automate Basics Wand Motor, features essential up, down, and stop functions for effortless shade adjustment. The wand also doubles as a convenient charging point via a USB-C port. This cordless, child-safe system provides a seamless upgrade from manual chain operation to convenient automation, offering an accessible and affordable motorised shade solution.

Featuring the patented Zero motor head, retaining manual system deductions, eliminating the need for bracket adjustment while ensuring minimal light-gap and easy retrofitting without the need for shade replacement.

Safe, Simple, Intuitive Operation

A cordless operating solution, safe for children and pets offering essential motorised controls. As simple as pressing a button with essential up, down and stop functionality.

Easy upgrade from manual to motorisation

Take the winder out and replace with a motor, eliminating the need to re-order blinds. *Check roller tube compatibility (see motor spec table).

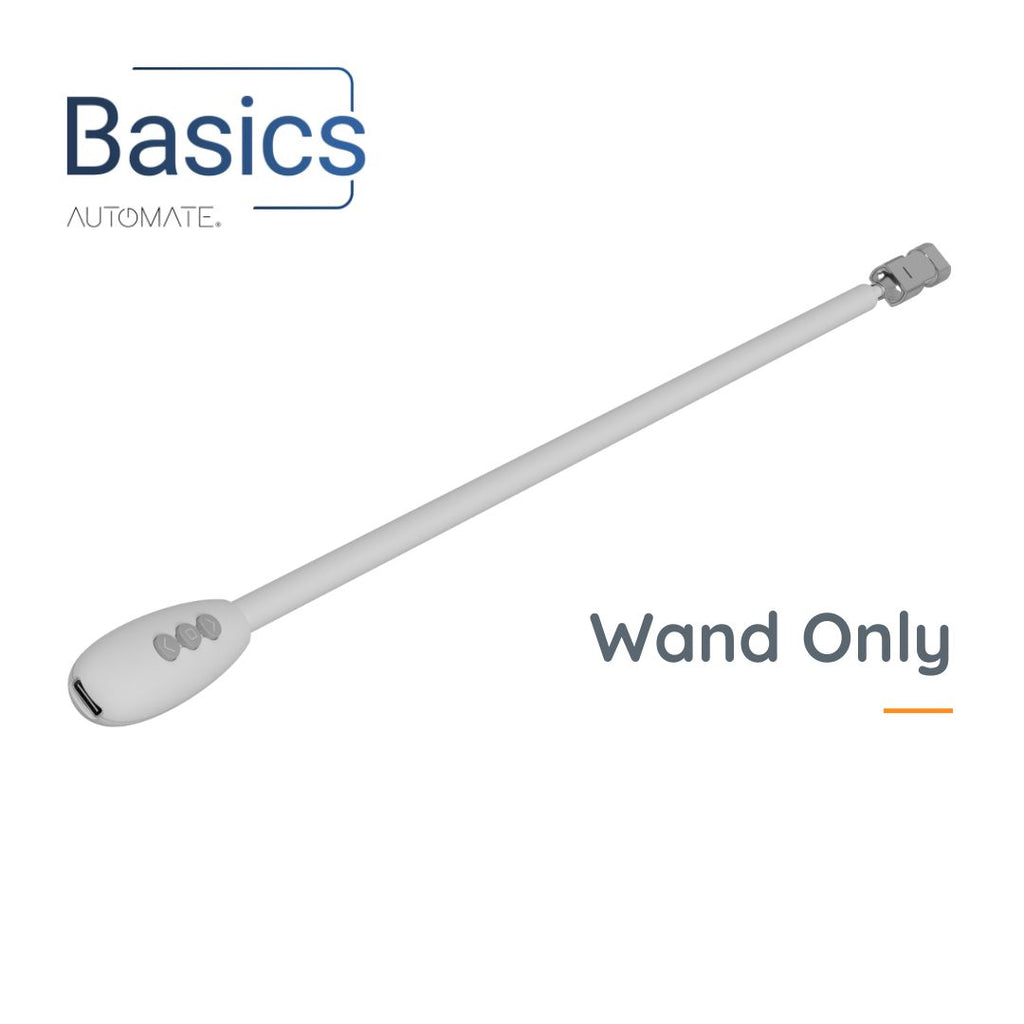

Magnetic Wand

The wand features a magnetic tip for easy connection to the motor, especially in hard-to reach areas, and is detachable for controlling multiple blinds throughout the home.

Easy to recharge

Accessible USB-C port on base of wand provides convenient charging access.

Specifications

Basics 1.1Nm Wand Motor Specifications

Item Details
Wand Motor 1.1Nm MT01-1325-069023
Voltage 5V-DC
Length 454.4mm
Max Run Time 6 min
Speed 28 RPM (Adjustable to 20 or 24)
Compatible with AUTOMATE | Motor Cap for 5V Motor
AUTOMATE | 5V USB Wall Charger 2A
AUTOMATE | 5V USB Cable Type C 4000mm
*S45 Tube Light
*S45 Tube Standard
*S45 Tube Heavy
Warranty 3 Years


Magnetic Wand Control Specifications

Item Details
Codes 600mm | MT03-0602-069002
900mm | MT03-0602-069003
1200mm | MT03-0602-069004
Color/Finish White
Length 600mm / 60cm / 24"
900mm / 90cm / 36"
1200mm / 120cm / 47"
Use with Basics 1.1Nm Wand Motor
Warranty 3 Years
