Automate Sensors

Specifications

Solar Wind & Sun Sensor

Solar Wind & Sun Sensor Details
Code MT02-0301-072001
Power Solar panel with 5F super capacitor, USB-C charging port
Wind Speed Range 0 to 180 km/h
Light Intensity Range 0 to 100 kLux
Communication ARC® Bidirectional
Radio Frequency 433.92MHz
Range 20m typical, up to 100m unobstructed
IP Rating IP54
Operating Temperature -20°C to +60°C
Mounting Universal mount for roof, wall, eave or fascia
Compatible Motors All ARC external motors, including the Automate Li-ion FT 15Nm Motor
Suits Zipscreen, Drop Awnings, Piuma, Wire Guide, Pivot Arm, Straight Drop and Yuki Awnings


Motion Sensor

Motion Sensor Details
Code MT02-0301-072002
Battery 2 x AAA alkaline (replace every 12 months)
Sensitivity 9 levels, 3G vibration range
Communication ARC®
Mounting Fits to the awning terminal bar, bracket, cradle and fixings included
Compatible Motors ARC external motors rated 15Nm and above, such as the Automate Li-ion FT 15Nm Motor
Suits External awnings with a terminal bar


Internal Sun Sensor

Internal Sun Sensor Details
Code MT02-0302-067003
Battery 1 x AAA (1.5V)
Light Intensity Range 0 to 60 kLux
Communication ARC® Bidirectional
Radio Frequency 433.92MHz
Range Up to 30m
Operating Temperature -10°C to +60°C (indoor)
Dimensions 60mm x 17mm, 30g without battery
Mounting 3M adhesive or suction cup
Compatible Motors All ARC internal motors, including the Zero Li-ion Q Motors
Suits Roller Blinds, Roman Blinds and other internal motorised shades

Trade accounts only

Online ordering is available to approved trade account holders in the window furnishing industry. We don't supply the general public or businesses outside the industry.

Apply for a Trade Account

Automate ARC sensors let motorised shades respond to the weather and the sun on their own. Choose the Solar Wind & Sun Sensor for external awnings and outdoor blinds, the Motion Sensor to protect awnings from strong gusts, or the Internal Sun Sensor to manage glare and heat on internal blinds.

Each sensor talks to Automate motors over ARC® (Automate Radio Communication), so there is no wiring between the sensor and the shade. Pair a sensor once and it takes over the routine work: extending shade when the sun comes out, retracting it when the wind picks up, and lowering internal blinds before a room heats up.

Wind & Sun | Motion | Internal Sun

Solar Wind & Sun Sensor

Mounted outside, this sensor reads both wind speed and light level. It extends awnings and outdoor blinds to provide shade when the sun is strong, then retracts them automatically in high winds to protect the fabric and hardware. A built-in solar panel keeps it charged, so no power supply is needed on site.

  • Wind and Light Sensing: Built-in anemometer and lux meter trigger the shade automatically.
  • Solar Powered: Solar panel and super capacitor keep the sensor charged, with a USB-C port as a backup.
  • LCD Display: Shows signal strength, wind speed and lux readings, then switches off to save power.
  • Universal Mount: Fixes to a roof, wall, eave or fascia.
  • One Sensor, Many Shades: A single sensor can control multiple ARC external motors.

See specs

Motion Sensor

The Motion Sensor fits to the terminal bar of an awning and detects the sudden movement caused by strong gusts. When it senses heavy vibration it retracts the awning to its home position, helping prevent damage before it happens.

  • 9 Sensitivity Levels: Set the response to suit the awning size and site exposure.
  • Communication Safeguard: Checks in with the motor every 30 minutes and retracts the awning if contact is lost.
  • Low Battery Warning: Beeps when the batteries need replacing.
  • Works as a Remote: Can be switched to an inactive mode for manual control.

See specs

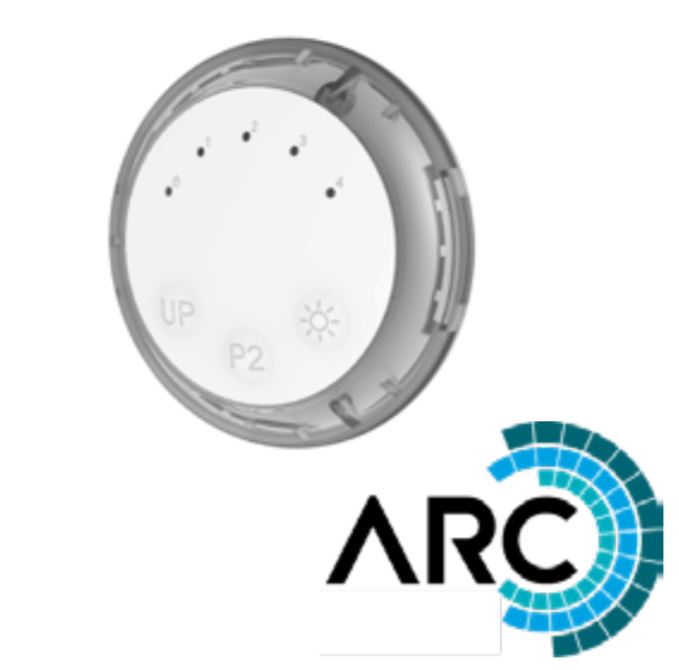

Internal Sun Sensor

A discreet sensor that sits on the inside of the window. When sunlight passes the level you set, it lowers the blinds to cut glare, protect furnishings from UV and keep the room cooler.

  • Three Preset Modes: Choose the light level that suits each room.
  • Built-in Lux Meter: Measures light intensity and adjusts the shade automatically.
  • Dual Mount Option: Fixes to the glass with 3M adhesive or a suction cup.
  • Compact Size: Only 60mm across, so it stays out of sight behind the blind.

See specs

Specifications

Solar Wind & Sun Sensor

Solar Wind & Sun Sensor Details
Code MT02-0301-072001
Power Solar panel with 5F super capacitor, USB-C charging port
Wind Speed Range 0 to 180 km/h
Light Intensity Range 0 to 100 kLux
Communication ARC® Bidirectional
Radio Frequency 433.92MHz
Range 20m typical, up to 100m unobstructed
IP Rating IP54
Operating Temperature -20°C to +60°C
Mounting Universal mount for roof, wall, eave or fascia
Compatible Motors All ARC external motors, including the Automate Li-ion FT 15Nm Motor
Suits Zipscreen, Drop Awnings, Piuma, Wire Guide, Pivot Arm, Straight Drop and Yuki Awnings


Motion Sensor

Motion Sensor Details
Code MT02-0301-072002
Battery 2 x AAA alkaline (replace every 12 months)
Sensitivity 9 levels, 3G vibration range
Communication ARC®
Mounting Fits to the awning terminal bar, bracket, cradle and fixings included
Compatible Motors ARC external motors rated 15Nm and above, such as the Automate Li-ion FT 15Nm Motor
Suits External awnings with a terminal bar


Internal Sun Sensor

Internal Sun Sensor Details
Code MT02-0302-067003
Battery 1 x AAA (1.5V)
Light Intensity Range 0 to 60 kLux
Communication ARC® Bidirectional
Radio Frequency 433.92MHz
Range Up to 30m
Operating Temperature -10°C to +60°C (indoor)
Dimensions 60mm x 17mm, 30g without battery
Mounting 3M adhesive or suction cup
Compatible Motors All ARC internal motors, including the Zero Li-ion Q Motors
Suits Roller Blinds, Roman Blinds and other internal motorised shades
